Reports

The Reports Application is included in the Base Package of the Zerynth Industrial IoT & AI Platform, and it allows the user to create and manage reports based on templates developed with the customer in mind.

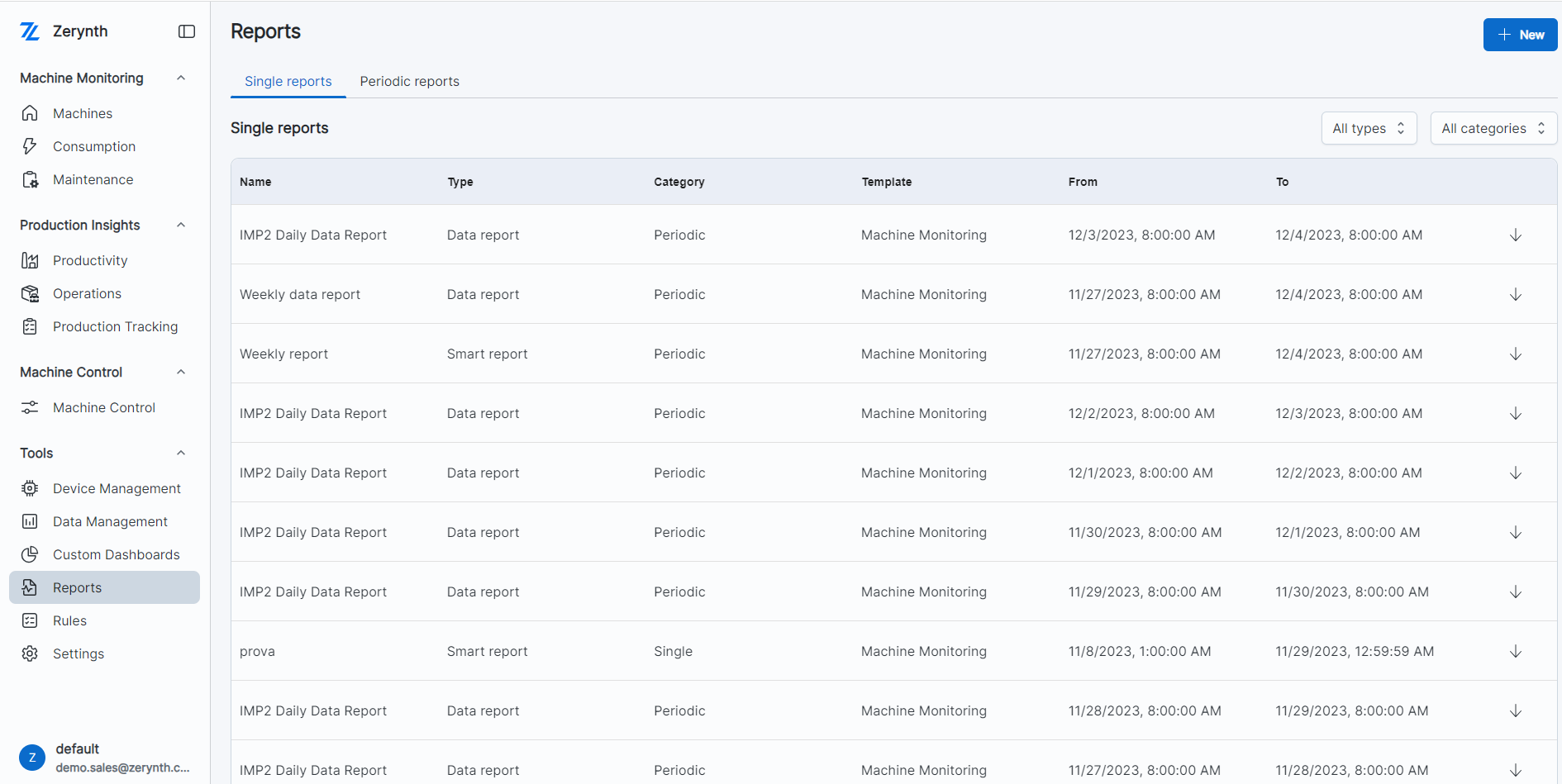

startpageReports

The application is divided in two tabs:

  • Single reports: shows a list of reports generated, either periodically or on demand, and allows you to download a report
  • Periodic reports: shows a list of scheduled reports, which are entities that periodically generate reports based on a template

The type of reports can be:

  • Smart report : for PDF reports
  • Data reports : for CSV reports.

Single Reports​

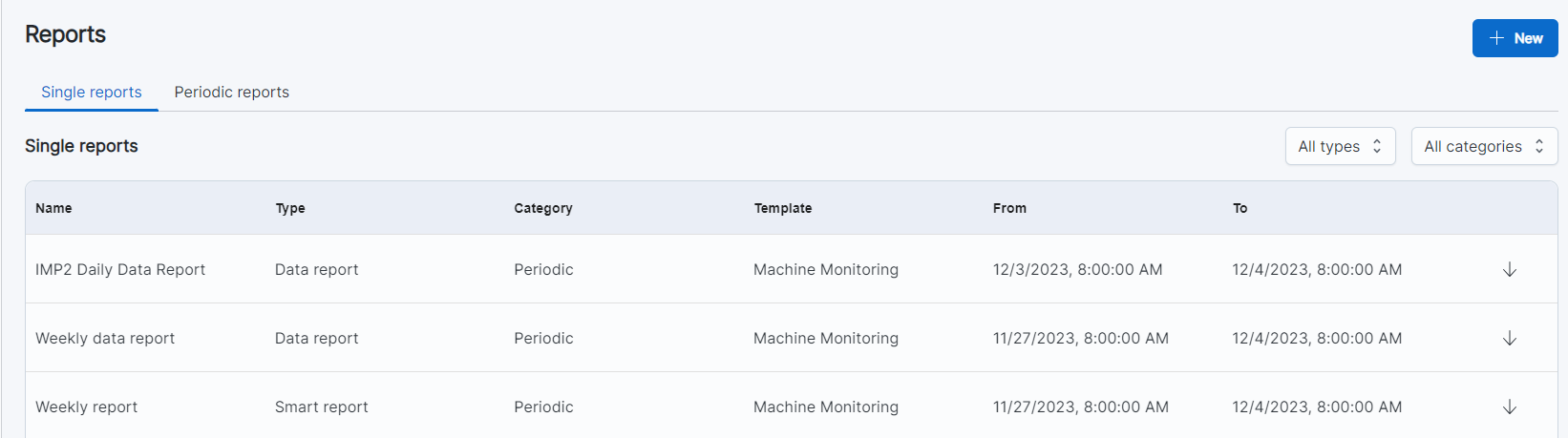

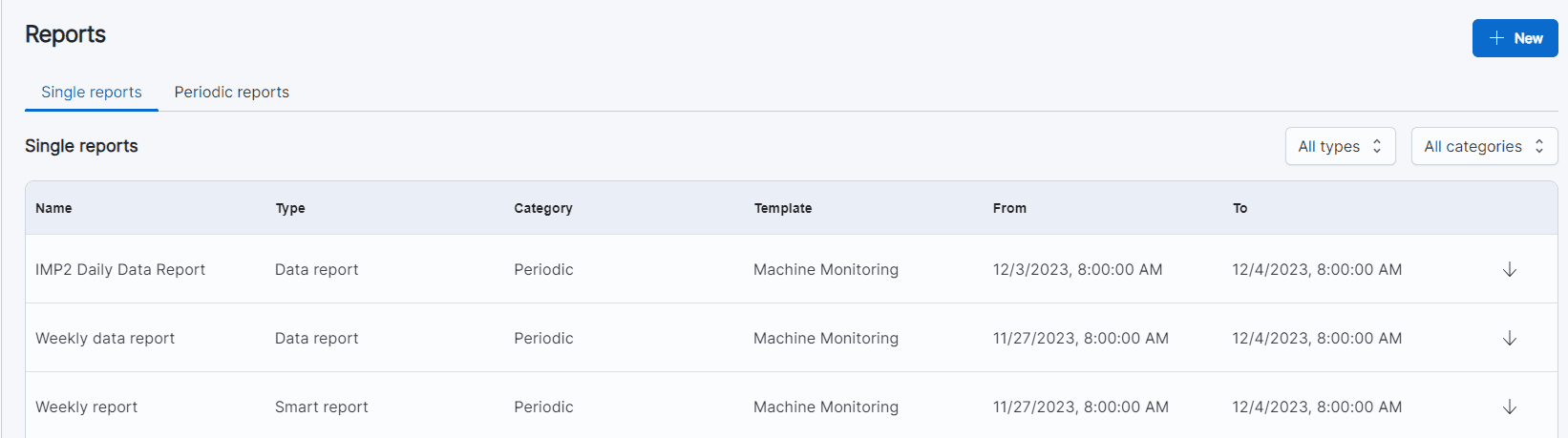

singlereports

The Single reports tab shows a list of the reports generated, with the following information:

  • Name
  • Type
  • Category: can be either periodic or single. It shows if it is a user requested report or an automatically generated one
  • Template: the template used to generate the report
  • From and To: the start and end dates of the data analysed by the report
  • Download: a button that allows you to download the report.

Periodic reports​

The Periodic reports are generated by an entity called Report Schedulers. For every new periodic report added, a new scheduler is put in place, which will generate the report only when it's time to.

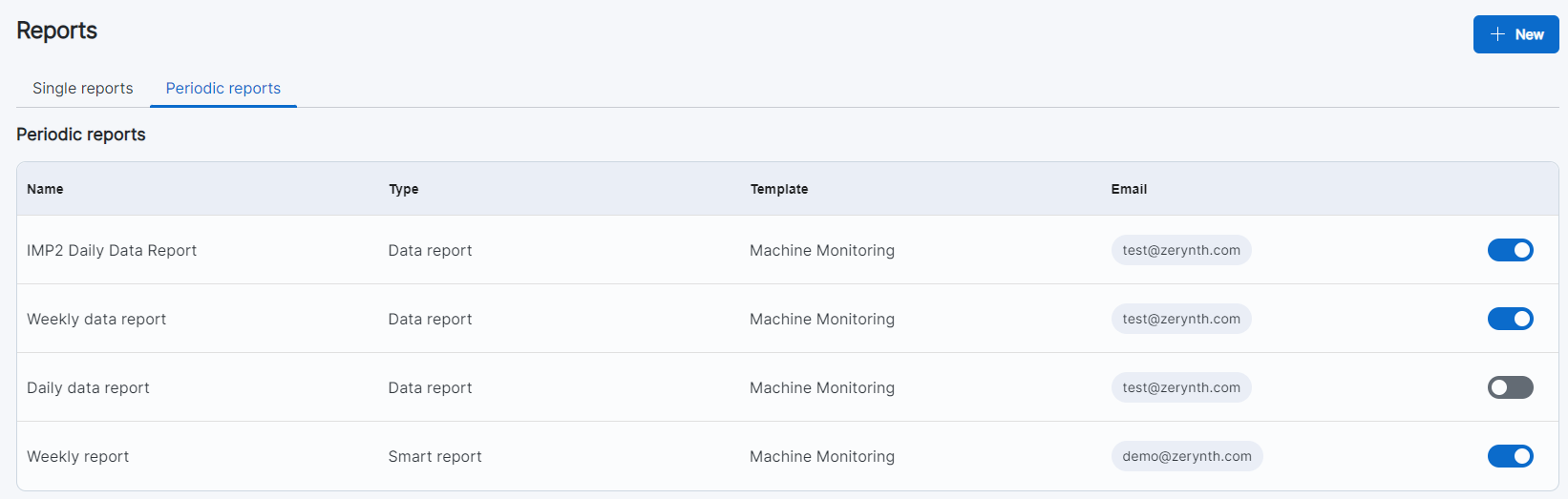

periodicreports

The Periodic reports tab shows a list of the Report Schedulers, with the following information:

  • Name
  • Type: can be Smart report for PDF reports, or Data reports for CSV reports
  • Template: the template used to generate the report
  • Email: he email address to which the report is sent
  • Status: a slider that shows if the scheduler is currently active or not

Configuration Reports​

Single Reports​

By clicking on the "+ New" button, you can create a new report.

buttonSingleReports

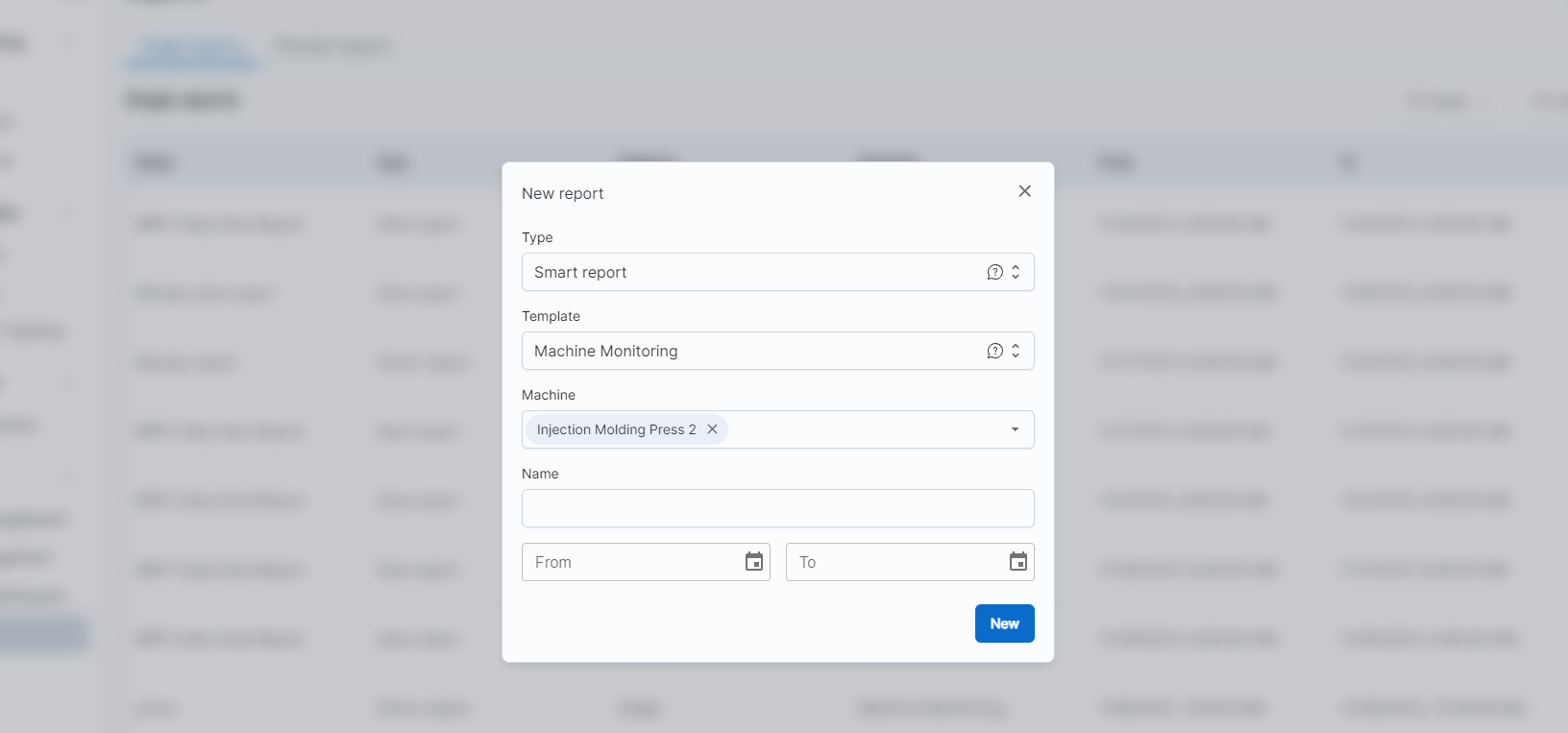

addSingleReports

Then, compile the field:

  • Type
  • Template
  • Machine
  • Name
  • From and To

Periodic Reports​

By clicking on the + New button, you can create a new report.

buttonperiodicreports

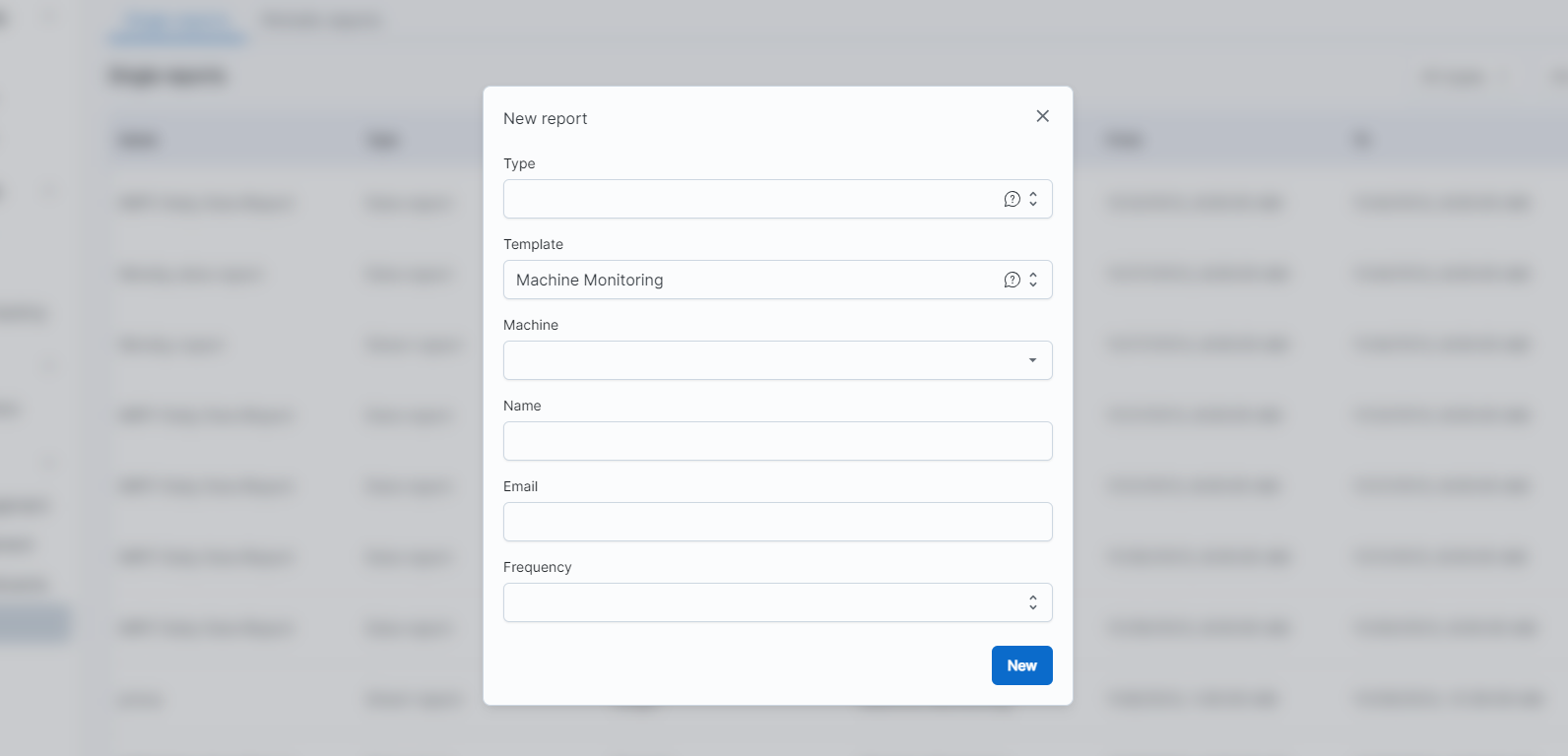

addperiodicreport

Then, compile the field:

  • Type
  • Template
  • Machine
  • Name
  • Email
  • Frequency : the frequency of the reports can be every one day, every seven days or every one month
