4ZeroBox

The 4ZeroBox is a modular hardware electronic unit that simplifies the development of Industrial IoT applications allowing rapid integration with sensors, actuators, and Cloud services.

Features

  • 4 Industrial Analog input channels, 2 Opto-isolated channels and 2 digital outputs.
  • Runs on ZM1 module (up to 240MHz, 16Mb of Flash, up to 600 MIPS)
  • Microchip ATECC608A crypto chip to ensure high-standard security.
  • Wi-Fi-and-Bluetooth,Ethernet support.
  • 2 On-board Relays, CAN, RS232 and RS485 Interfaces.
  • DIN-rail mountable (9 slots)

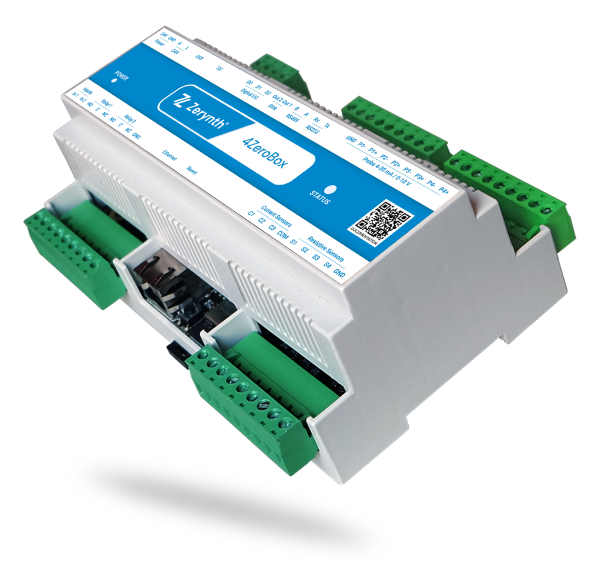

4zerobox

Windows drivers​

In Windows it may be necessary to install USB drivers.

Device Summary​

  • 4 Industrial Analog input channels, 2 Opto-isolated channels and 2 digital outputs(2A @ 30V).
  • Runs on ZM1 module (up to 240MHz, 16Mb of Flash, up to 600 MIPS)
  • Microchip ATECC608A crypto chip to ensure high-standard security.
  • Wi-Fi-and-Bluetooth,Ethernet support.
  • 2 On-board Relays (6A @ 250V AC), CAN, RS232 and RS485 Interfaces.
  • DIN-rail mountable (9 slots)
  • 8 to 36V Power Supply
  • MicroSD card slot
  • Li-Po battery support
  • RGB status led
  • Powered by Zerynth OS – efficient and easy to use, Python enabled OS for IoT applications.

Resources​

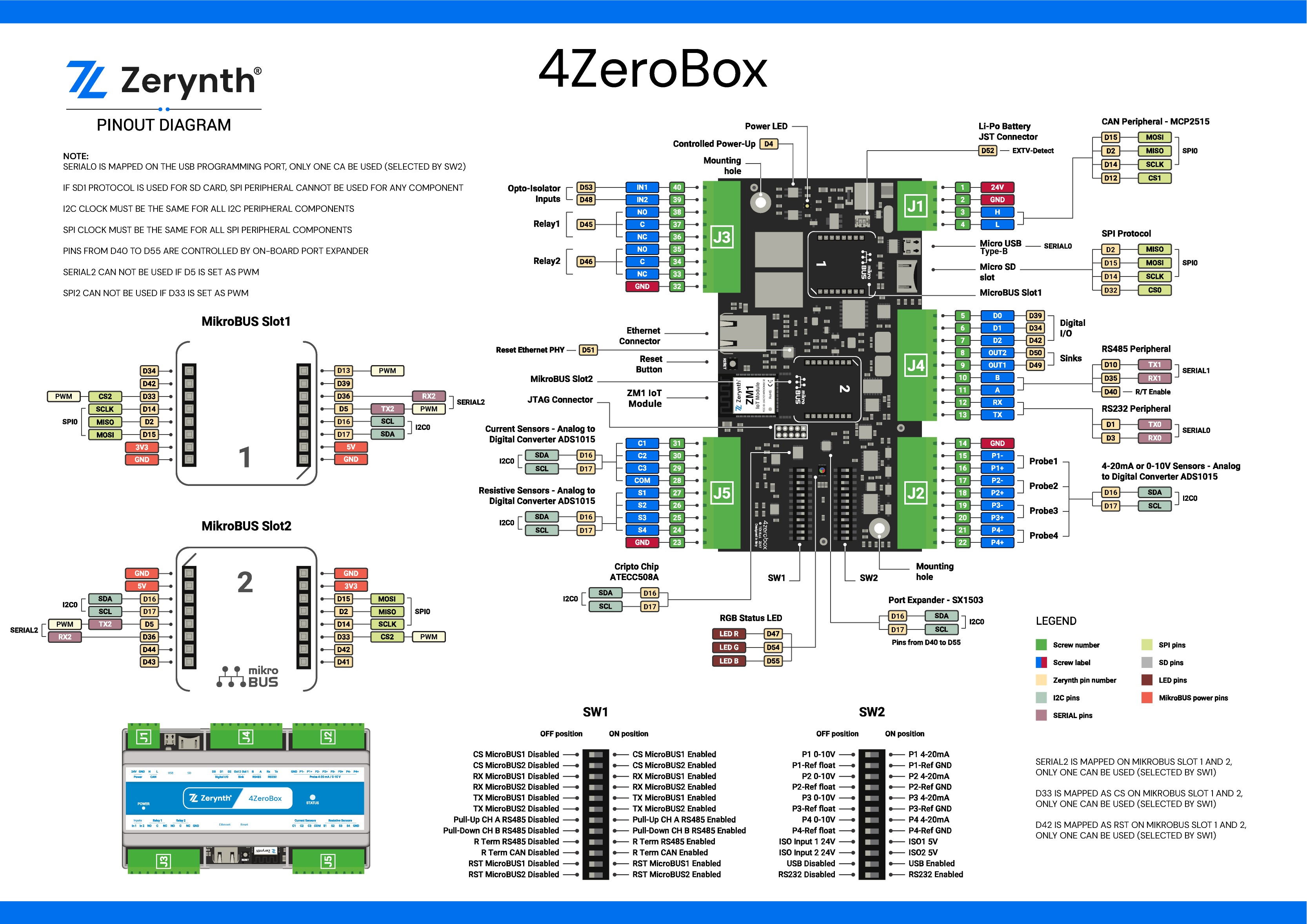

Pin Mapping​

4zerobox-pin-map

Power​

Power to the 4ZeroBox is supplied via the on-board USB Micro B connector or directly via the “24V” screw. The power source is selected automatically. Zerynth 4ZeroBox has also a JST Li-Po battery connector (3.7V).
