Data Management

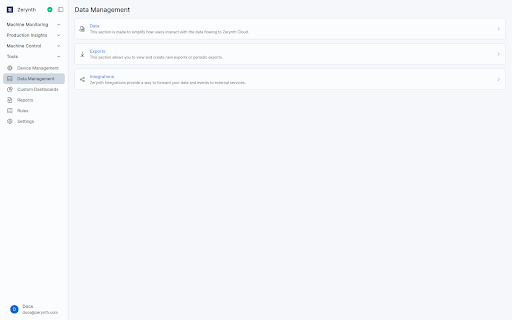

The Data Management page allows to manage the data stream from and to the Zerynth Industrial IoT & AI Platform, and it is divided in three main sections.

01_DataManagement

Data​

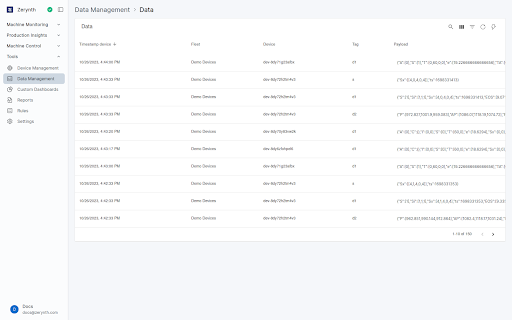

The Data section shows the data stream from each device to the Zerynth Industrial IoT & AI Platform.

02_DataManagement

The stream is displayed with a table showing the following columns:

  • Timestamp device: the timestamp at which the device sent the data;
  • Fleet: the fleet the device belongs to;
  • Device: the id of the device which sent the data;
  • Tag: the tag of the message;
  • Payload: the payload of the message.

The table can be sorted by any of the columns, and the sorting order can be reversed by clicking again on the same

column.

It can also be filtered by device, tag and payload. Read more about the filter functions in the Knowledge base.

Exports​

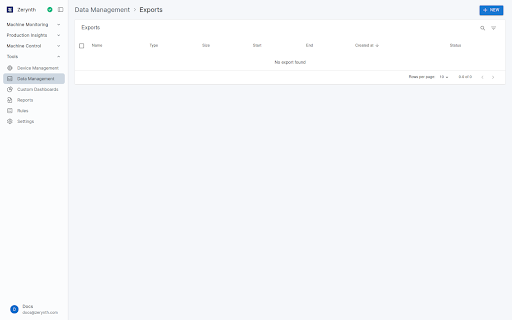

The Exports section allows to export the data stream as a csv or json file.

03_DataManagement

The existing exports are displayed with a table, with the following columns:

  • Name: the name of the export;
  • Type: the type of the export, which can be csv or json;
  • Size: the size of the export;
  • Start: the start date and time of the export (expressed in local time);
  • End: the end date and time of the export (expressed in local time);
  • Created at: the date and time of the creation of the export (expressed in local time);
  • Status: the status of the export, which can be Pending, Done or Failed.

The table can be sorted by any of the columns, and the sorting order can be reversed by clicking again on the same column.

It can also be filtered by device, tag and payload. Read more about the filter functions in the Knowledge base.

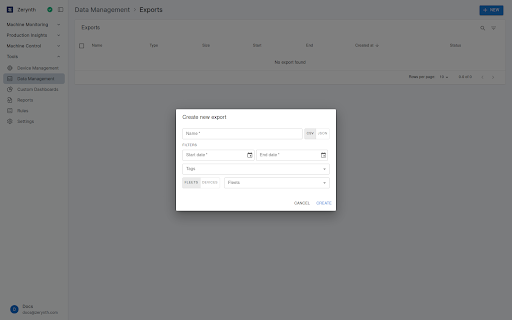

The user also has a + New button in the upright corner of the page, which allows to create a new export.

04_DataManagement

A new export requires the following information:

  • Name: the name of the export;
  • Type: the type of the export, which can be csv or json;
  • Start date: the start date of the export;
  • End date: the end date of the export;
  • Tags: the tags to be exported;
  • Device filter: a filter which allows to filter the data on a single device or an entire fleet.

Integrations​

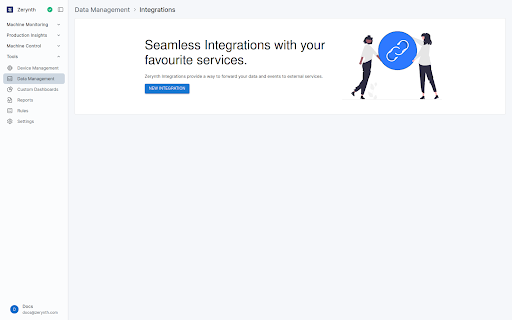

The Integrations section allows to integrate the data stream with external services.

05_DataManagement

The existing integrations are displayed each with a card, showing the following information:

  • Name: the name of the integration
  • ID: the unique identifier of the integration
  • Type: the type of the integration, which can be data_stream or event_stream
  • Tags: a filter on the tags of the stream, can be null to accept all tags
  • Fleets: a filter on the fleets of the stream, can be null to accept all fleets
  • Subtype: the subtype of the integration, such as webhook
  • URL: the destination URL of the integration
  • Status: a slider which shows the status of the integration

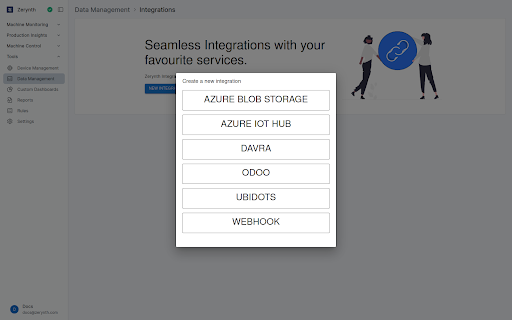

The user also has a + New button in the upright corner of the page, which allows to create a new integration.

06_DataManagement

A new integration requires a name, and specific information relative to the subtype of the integration. Here is an example of creation for a Webhook Integration.

A Webhook Integration simply forwards the data sent by the devices to the cloud to the endpoint configured by the user.
