Advanced
Target Asset
- Auxiliary Machinery with digital control (inverter)
- Production Machinery with PLC
- Complex Production or Auxiliary Machineries that requires more than 1 power clamp and more than 3 DIO/AIN signals for retrofitting
Features
Elastel EG500 4ZeroNode for interfacing with aThis kit comes with an Elastel EG500 4ZeroNode for interfacing both through advanced OT protocols like OPCUA, Modbus, and Siemens S7, and via power clamps and digital signals in a retrofitting scenario. It is also compatible with the 4ZeroAgent and features both Ethernet/WiFi and mobile connectivity.dvanced OT protocols like OPCUA and 4ZerAgent ready. Retrofitting with clamps and Digital signals is also possible. Ethernet/Wifi and Mobile Connectivity.
The kit includes:
- 1x Elastel EG500 4ZeroNode
- 1x 220-24V power supply,
- 2x decoupling relay,
- 1x 100 Amp Power Clamp (500A power clamp also available as addon, verify and notify this need to the delivery team)
General Hardware Characteristics

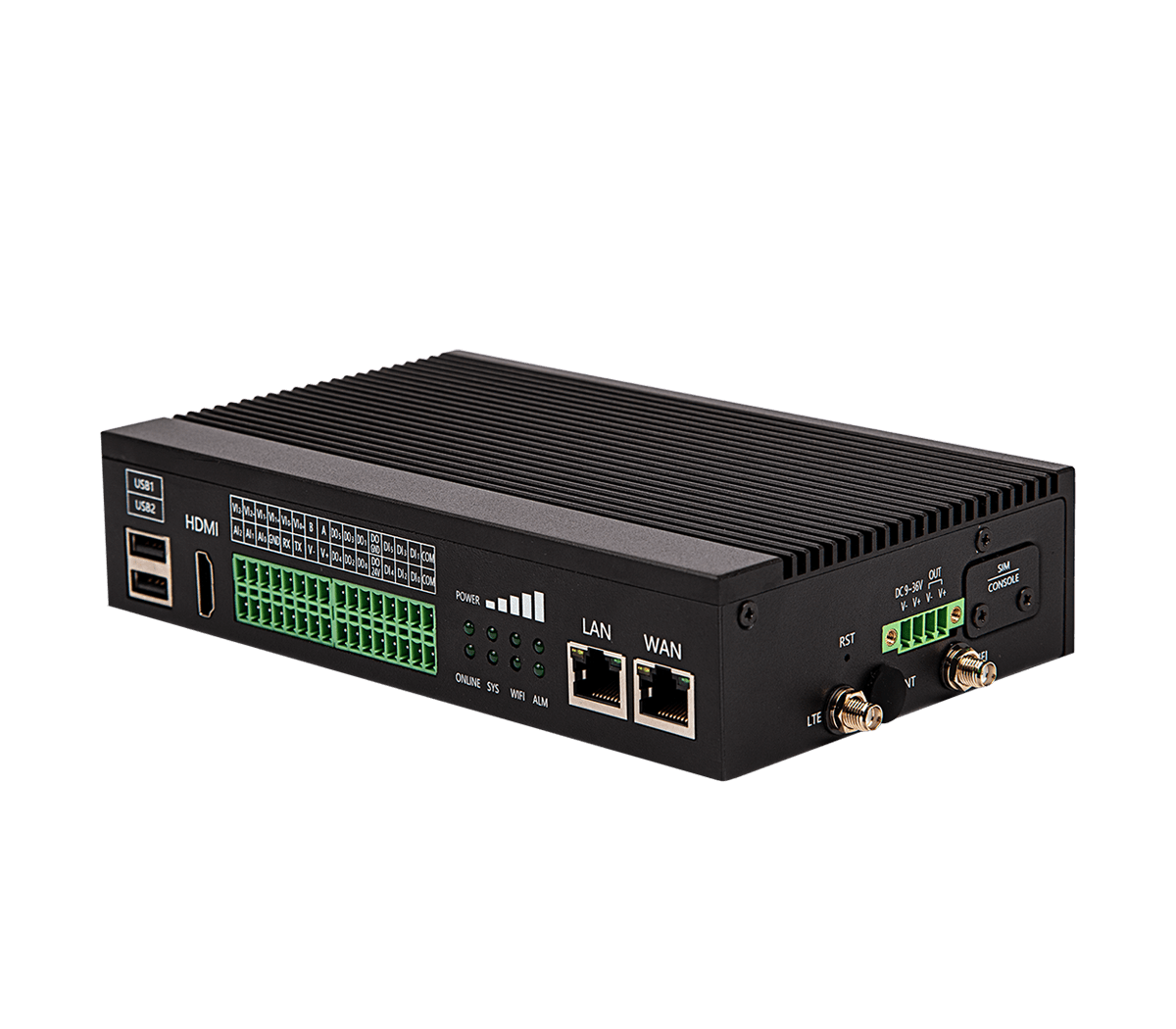

Elastel EG500
- Raspberry Pi CM4:
- ARM Cortex-A72 Quad-core processor 1.5GHz
- Various RAM and storage configurations available:
- 2GB RAM and 16GB eMMC
- 4GB RAM, 32GB eMMC
- Zerynth OS based on Raspbian with Zagent
- Isolated Serial Port 1x RS485, and 1x RS232
- Industrial-grade isolated 6x DI, 6x DO and 3x ADC
- 2x 10/100/1000Mbps Gigabit Ethernet Port
- 1x Up to 4kp60 supported HDMI output
- 2x High-Speed USB 2.0 Ports
- Compatible with multiple OT protocols including: Modbus TCP, Modbus RTU, OPC UA, EtherNET/IP, ISO on TCP, Mitsubishi MC serial, etc.
Screw Description
Power Supply
EG500 right side panel provide a 4-pin terminal block connector for Power input and a bridge connection for power output.
| Screw Number | Symbol | Description |
|---|---|---|
| 1 | DC V- | External Power Supply Input negative pin |
| 2 | DC V+ | External Power Supply Input positive pin |
| 3 | OUT V- | External Power Supply Output negative pin (parallel to pin 1) |
| 4 | OUT V+ | External Power Supply Output positive pin (parallel to pin 2) |
Serial and DI/DO/AI Ports
EG500 provides two terminal blocks for expanded I/O ports, the ports PIN defination as shown as the printed label above terminal block accordingly.
| Screw Number | Symbol | Description |
|---|---|---|
| B1_1 | VI2- | 0-10VDC Voltage Analog Input 2 negative Input |
| B1_2 | AI2 | 4-20mA Current Analog Input 2 Input |
| B1_3 | VI2+ | 0-10VDC Voltage Analog Input 2 positive Input |
| B1_4 | AI1 | 4-20mA Current Analog Input 1 Input |
| B1_5 | VI1- | 0-10VDC Voltage Analog Input 1 negative Input |
| B1_6 | AI0 | 4-20mA Current Analog Input 0 Input |
| B1_7 | VI1+ | 0-10VDC Voltage Analog Input 1 Positive Input |
| B1_8 | GND | R232 GND |
| B1_9 | VI0- | 0-10VDC Voltage Analog Input 0 Negative Input |
| B1_10 | RX | RS232 Receive |
| B1_11 | VI0+ | 0-10VDC Voltage Analog Input 0 Positive Input |
| B1_12 | TX | RS232 Transmit |
| B1_13 | B | RS485 B |
| B1_14 | V- | Power Supply Output negative pin |
| B1_15 | A | RS485 A |
| B1_16 | V+ | Power Supply Output positive pin |
| Screw Number | Symbol | Description |
|---|---|---|
| B2_1 - B2_6 | DO5 - DO0 | Digital Output 5 - 0 |
| B2_7 | DO GND | Digital Output GND |
| B2_8 | DO 24V | Digital Output 24V |
| B2_9 - B2_14 | DI5 - DI0 | Digital Input 5 - 0 |
| B2_15 - B2_16 | COM | Digital Input COM |
Technical Specifications
For tecnical specifications and additional info, please refer to the EG500 datasheet
