Electrical Panel Advanced
Target Asset
- Electrical panel monitoring to track the consumption of both input and output lines. The Power Analyzer IoT Kit enables you to monitor advanced electric parameters, including power factor (cosphy) and active/passive power analysis.
- Suitable for monitoring scenarios with the need to acquire signals from multiple power lines, this kit interfaces electrical panels using 3 power clamps connected to the Power Meter for the input lines and up to 5 power clamps for the output lines.
- Lines and Panel status can be inferred via power consumption level analysis (thresholds).
Features
- Edge device equipped with 8 AIN ports for connecting analog sensors.
- Supports up to 8 channels for reading power clamps to be installed in the electrical panel.
- Features 3 dedicated channels for comprehensive main phase analysis, including general power metrics and an unbalance index.
- Features 5 specialized channels for monitoring sublines, accommodating single-phase monitoring even in cases where the sublines are three-phases.
- Ethernet/Wifi Connectivity.
The kit includes:

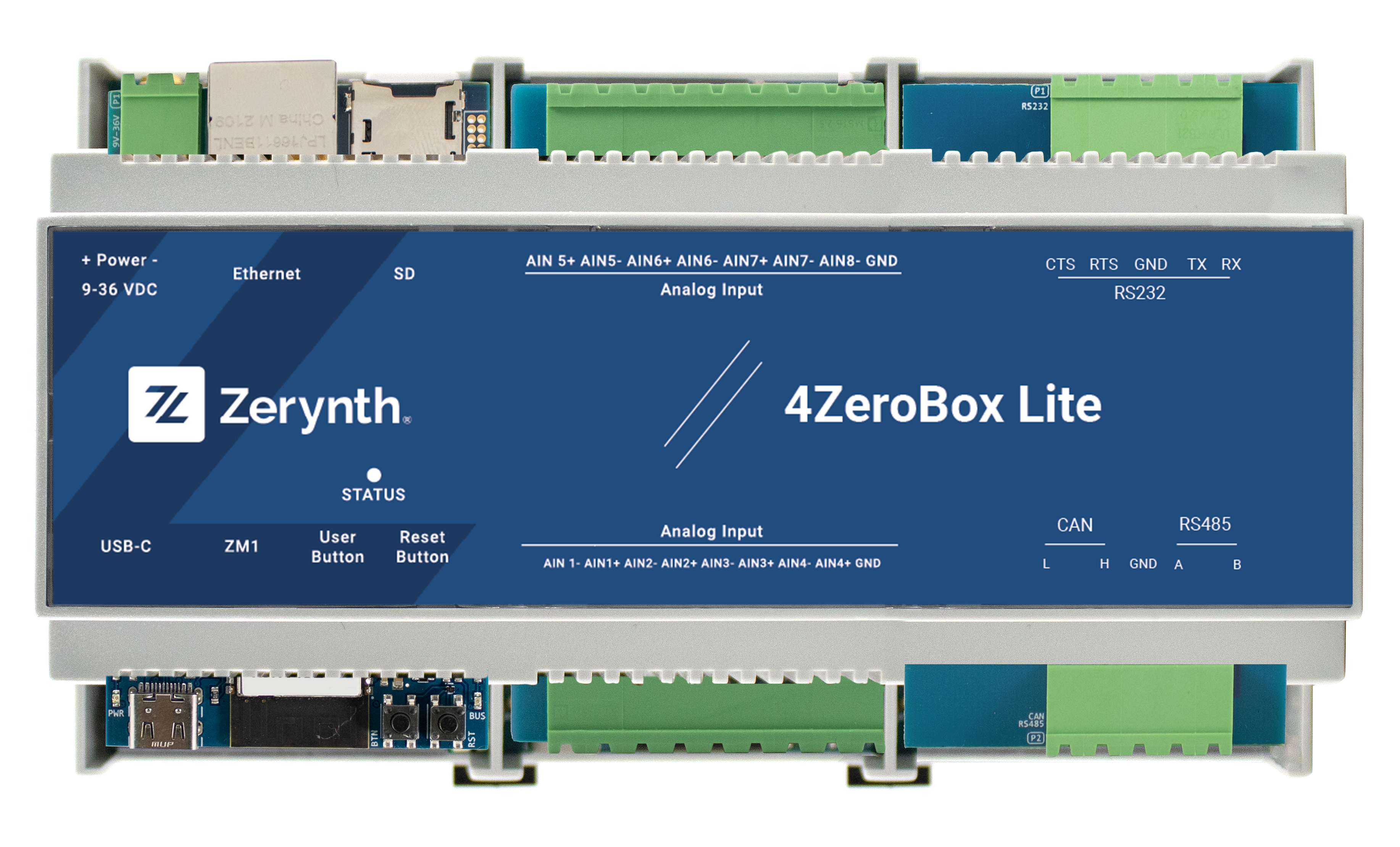

- 1x 4ZeroBox Lite (DB+AIN)
- 1x 220-24V power supply,
- 5 x 100 Amp Power Clamps
- 1 x EXP SER
- 1 x Schneider PM3250 Power Analyzer
- 3 x 500 AMP PM3250 dedicated power clamps
General Hardware Characteristics
For the ZM1-DB and EXP-AIN Hardware Characteristics please refer to the Electrical Panel Documentation.
For the Power Meter Addon Hardware Characteristics please refer to the Electrical Panel Documentation.
Technical Specifications
| Power Supply | |
| Voltage | 9-36 V DC |
| Power Consumption | Typical: 1 W; Maximum: 5 W. |
| Inputs / Outputs | |
| Microcontroller I/O Pin Voltage | Max supported voltage: 3.3 V |
| Environmental Conditions | |
| Temperature | -40 to +85 °C |
| Humidity | Max 80% (not condensing) |
| Storage Temperature | -40 to +85 °C |
| Degree Protection | < IP40 |
| Connectors | |
| Ethernet | RJ45 Connector |
| Programming | USB-C Connector |
| Micro SD | Micro SD Slot |
| Operating Frequency | ||
| Categories | Items | Specifications |
| Certification | RF Certification | FCC/CE-RED |
Green Certification | RoHS/REACH | |
| Test | Reliability | HTOL/HTSL/uHAST/TCT/ESD |
| Wi-Fi | Protocols | 802.11 b/g/n (802.11n up to 150 Mbps) |
A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support | ||
Frequency Range | 2.4 ~ 2.5 GHz | |
| Bluetooth | Protocols | Bluetooth v4.2 BR/EDR |
Radio | NZIF receiver with –97 dBm sensitivity | |
NZIF receiver with –97 dBm sensitivity | ||
AFH | ||
