Electrical panel
Target Asset
- Electrical panel monitoring, where tracking the consumption of both input and output lines is required.
- Suitable for monitoring scenarios where acquisition of signals from multiple power lines is necessary. With this kit, electrical panels are interfaced using 3 power clamps for the input lines and up to 5 power clamps for the output lines.
- Lines and Panel status can be inferred via power consumption level analysis (thresholds).
Features
- Supports up to 8 channels for reading power clamps to be installed in the electrical panel.
- Features 3 dedicated channels for comprehensive main phase analysis, including general power metrics and an unbalance index.
- Features 5 specialized channels for monitoring sublines, accommodating single-phase monitoring even in cases where the sublines are three-phases.
- Ethernet/Wifi Connectivity
The kit includes:
- 1x 4ZeroBox Lite (DB+AIN)
- 1x 220-24V power supply,
- 3 x 500 Amp Power Clamps
- 5 x 100 Amp Power Clamps
General Hardware Characteristics
DB-ZM1
The ZM1-DB is a flexible, modular, board that features the ZM1 SoM
- ZM1 Module
- 32-bit dual Core MCU based on ESP32-WROOM-32SE;
- Clock frequency up to 240 MHz;
- Embedded 16 MB SPI Flash Memory;
- Integrated ATECC608A crypto element allowing ultra-secure communications;
- WiFi Support;
- 9 to 36V input Power Supply;
- MicroSD card slot;
- Ethernet Support;
- Reset and User Buttons;
- RGB status LED;
- USB-C power and programming.

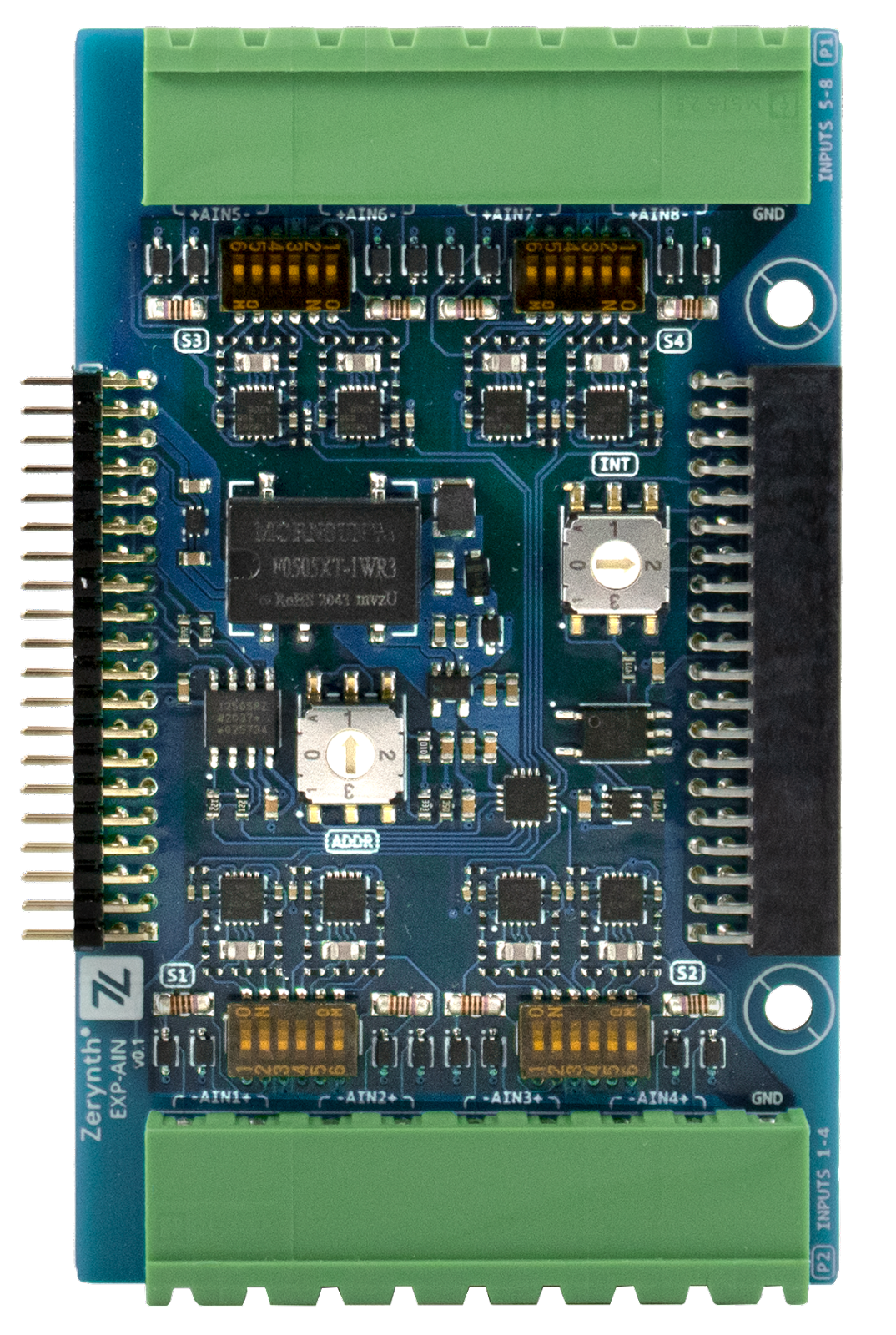

EXP-AIN
The EXP-AIN expansion board is a Analog input module that features:
- 8 Analog Channels configurable as
- 4-20 mA Current channel (full input range ̣±20 mA);
- 0-10V Voltage Channel (full input range ±10 V);
- Resistive Sensor Channel;
Screw Description
DB-ZM1
Connector J1
| Screw Number | Symbol | Description |
|---|---|---|
| 1 | Power+ | External Power Supply positive pin |
| 2 | Power- | External Power Supply negative pin |
EXP-AIN
P1 - Upper Screw Terminal
| Screw Number | Symbol | Description |
|---|---|---|
| 1,2 | AIN5-/AIN5+ | Analog Input Channel #5 4-20mA/0-10V/Resis./Current |
| 3,4 | AIN6-/AIN6+ | Analog Input Channel #6 4-20mA/0-10V/Resis./Current |
| 5,6 | AIN7-/AIN7+ | Analog Input Channel #7 4-20mA/0-10V/Resis./Current |
| 7,8 | AIN8-/AIN8+ | Analog Input Channel #8 4-20mA/0-10V/Resis./Current |
| 9 | GND | Isolated Ground reference for analog bias |
P2 - Lower Screw Terminal
| Screw Number | Symbol | Description |
|---|---|---|
| 10,11 | AIN1-/AIN1+ | Analog Input Channel #1 4-20mA/0-10V/Resis./Current |
| 12,13 | AIN2-/AIN2+ | Analog Input Channel #2 4-20mA/0-10V/Resis./Current |
| 14,15 | AIN3-/AIN3+ | Analog Input Channel #3 4-20mA/0-10V/Resis./Current |
| 16,17 | AIN4-/AIN4+ | Analog Input Channel #4 4-20mA/0-10V/Resis./Current |
| 18 | GND | Isolated Ground reference for analog bias |
NOTE: All I/O pins on screw terminals are isolated from the zBUS interface.
- Isolation: 125V(rms) / 1500V(peak)
- Overvoltage Cat.II / Pollution Deg.II
NOTE: Analog channel to channel isolation > 250kΩ
Switches
Rotary-switches
ADDR SW: Chooses the address of the ADC Chip. Enable multiple boards to be connected simultaneously. Present in EXP-AIN as SW1.
| Position | Address |
|---|---|
| 0 | 0x10 |
| 1 | 0x11 |
| 2 | 0x12 |
| 3 | 0x13 |
INT SW: Controls which hardware channel you want to link the interrupt. Present in EXP-AIN as SW2.
| Pin | Pin on zBUS | Pin ZM1-DB |
|---|---|---|
| 0 | INTR | D35 |
| 1 | INTB | NC |
| 2 | INTE1 | D46 |
| 3 | INTE2 | D47 |
Dip-switches
EXP-AIN has a different set of dip-switches that allow it to change the configuration of the expansion.
Switch Sx: each Analog channel can be configured with 3 DIP switches that enable specific features. Each Sx switch controls two Analog channels
| Pin | OFF | ON |
|---|---|---|
| 1 | Gain ADC AINx = 1 | Gain ADC AINx = 5 |
| 2 | AINx read as voltage | AINx read as Current |
| 3 | - | AINx read as resistive sensor |
| 4 | Gain ADC AINy = 1 | Gain ADC AINy = 5 |
| 5 | AINy read as voltage | AINy read as Current |
| 6 | - | AINy read as resistive sensor |
Technical Specifications
| Power Supply | |
| Voltage | 9-36 V DC |
| Power Consumption | Typical: 1 W; Maximum: 5 W. |
| Inputs / Outputs | |
| Microcontroller I/O Pin Voltage | Max supported voltage: 3.3 V |
| Environmental Conditions | |
| Temperature | -40 to +85 °C |
| Humidity | Max 80% (not condensing) |
| Storage Temperature | -40 to +85 °C |
| Degree Protection | < IP40 |
| Connectors | |
| Ethernet | RJ45 Connector |
| Programming | USB-C Connector |
| Micro SD | Micro SD Slot |
| Operating Frequency | ||
| Categories | Items | Specifications |
| Certification | RF Certification | FCC/CE-RED |
Green Certification | RoHS/REACH | |
| Test | Reliability | HTOL/HTSL/uHAST/TCT/ESD |
| Wi-Fi | Protocols | 802.11 b/g/n (802.11n up to 150 Mbps) |
A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support | ||
Frequency Range | 2.4 ~ 2.5 GHz | |
| Bluetooth | Protocols | Bluetooth v4.2 BR/EDR |
Radio | NZIF receiver with –97 dBm sensitivity | |
NZIF receiver with –97 dBm sensitivity | ||
AFH | ||
